Product Description

Process characteristics
1. Poly (methyl methacrylate) contains polar methyl groups and has obvious hysteretic properties. Its water absorption rate is generally between 0.3% and 0.4%, and must be dried before forming.
2. Polymethyl methacrylate has effective and obvious non-Newtonian fluid characteristics in the temperature range of molding. The melt viscosity decreases with the increase of shear rate, and the melt viscosity is also sensitive to the change of temperature.Therefore, the melt viscosity and good fluidity can be obviously reduced by increasing the forming pressure and temperature in the forming process of POLYmethyl methacrylate.
3. The temperature at which polymethyl methacrylate began to flow was about 160℃, and the temperature at which it began to decompose was higher than 270℃, with a wide processing temperature range.
4. The melt viscosity of polymethyl methacrylate is higher, and the cooling rate is faster, and the product is easy to generate internal stress, so strict control requirements for the process conditions are required when forming, and the product also needs post-treatment after forming.
5. Poly (methyl methacrylate) is an amorphous polymer with a small shrinkage rate and its range of variation, generally around 0.5%-0.8%, which is conducive to molding plastic parts with high dimensional accuracy.
6. Poly (methyl methacrylate) has excellent cutting performance and its profiles can be easily machined to various required sizes.
The processing technology

Specification

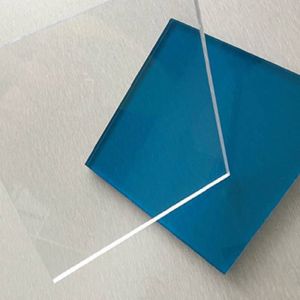

Acrylic casting plate: high molecular weight, excellent stiffness, strength and excellent chemical resistance.This type of plate is characterized by small batch processing, unparalleled flexibility in color system and surface texture effect, and complete product specifications, suitable for a variety of special purposes.
Acrylic extrusion plate: compared with casting plate, the extrusion plate has lower molecular weight and slightly weaker mechanical properties.However, this feature is conducive to bending and thermal forming, and is conducive to rapid vacuum blister forming when dealing with large size plates.At the same time, the thickness tolerance of extruded plate is smaller than that of cast plate.Because extruded plate is mass automated production, color and specifications are inconvenient to adjust, so the diversity of product specifications are limited.
Acrylic board quality classification in the country is mainly divided into three categories: one is the import of the board;Second, Taiwan-funded board;Third, domestic plate.They differ in the origin and (MMA) purity of the raw materials used.This also is the key that decides the quality of plank and price.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging

services will be provided.

Packing&Shipping

Company Profile

PVC can be seen everywhere in People's Daily life.PVC can not only represent the color of nature, but also the color of people's imagination.Contact us to customize the color you want.

     TOBO GROUP sales head offce in Shanghai.

     We are one of the Professional manufacturers Exporter  Pipeline products  in China .Our company was established in 1998, the plant covers 550, 000 square meters and a construction area of 6,8,000square meters, existing 260 workers and 45 technicians.

      We have five branch factories which can supply the best quality pipes, tubes, fittings flanges and related accessories. Now, it owns a number of advanced pipe production equipments, metal, forging, machining, cold forming, hot extrusion, such as heat treatment process, producing 60, 000 tons of pipe fittings. Company with a variety of detection devices, such as nondestructive testing, chemical analysis, metallographic examination, physical experiments. The technical is very strength, our main products contain fittingsforged socket welding fittings and threaded fittings, pipe weld and the materials of the products contain stainless steel ,duplex-stainless steel alloy steel.

       In addition, we are authorized by more than 120 top-class mills from South Korea,Japan and China like JFE,SUMITOMO,POSCO,BAOSTEEL, TISCO,LISCO,.TPCO,HENGYANG VALIN and so on .

Our main products as follows:

• Stainless steel pipe & tube

(seamless pipe / welded pipe / square pipe /  rectangular tube,duplex stainless / inconel tube)

• Carbon / alloy steel pipe & tube

(seamless pipe / ERW / SSAW / LSAW / UOE / hollow section pipe / Galvanized Pipe)

• Tubing and casting

(line pipe,water pipeline,gas pipeline,oil pipeline)

• Special steel tube

(copper tube/titanium tube/aluminium tube/nickel alloy )

• steel bar

(round bar/angle steel /flat steel/channel steel/steel wire)

• Pipe Fittings

(eblows, equal / reducing tees, concentric/eccentric reducers, caps, crosses, bends, dish end/end cup, stub ends, unions, couplings / hex couplings, swage nipples , nipples, hex. plug, sockolet, weldolet, thredolet, etc)

• Flange

(DIN flange/ AISI flange/blind flange/welding flange/stainless flange/slip on flange)

• steel sheet / coil

(stainless steel/carbon steel/alloy steel/galvanized steel/aluminium )

• Valve

(ball valve/gate valve/butterfly valve/globe valve/swing check valve/ check valve)

      In order to comply with the global modernization services development trends and eliminating the varieties distress of the global enterprise‘s purchase in the consumables.. We coordinate the pressure pipe manufacturer which with the scale of production,quality control and high cost performance (has passed ISO 9001 quality series attestation, ccs, DNV,PED/97/23/EC,AD2000-WO,special equipment manufacturing license,ASME-SA182.through a variety of effective assort mechanism to make up the shortage of supply and Post-processing of VAT enterprise, and to supply high quality pipe fittings, because of the superior quality and good service, we have established long term business cooperation with more than 60 countries and areas,which covers Europe, Africa, South America, North America, Middle East, Taiwan and South East Asia and so on.

      With many years effort and support from our valuable customers, these products have obtained a big market share in the world.

      Our business principle is "Superior quality, Competitive price, Timely delivery and Considerate service " Standing to the principle of “Enterprises focus on the core business”, TOBO will actively promotes the globalization of business strategy approach, using advanced supply chain management technology to service for clients with higher quality and more competitiveness ‘ s products. At the same time, we sincerely reply your inquiry, honesty waiting for your visiting and wish to have cooperation with you at the any time. We welcome all the customers to contact us for more information. We assure you, with our technical knowledge and experience, our company will be one of your Stable, Continuate business parters in China.
