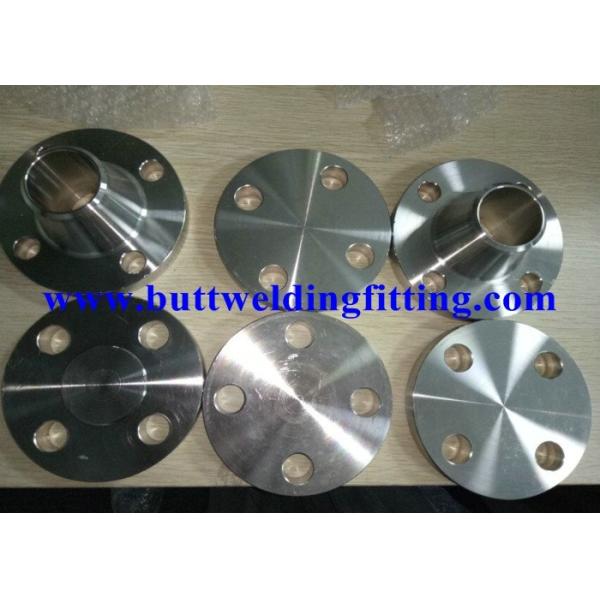

ANSI B16.5 Stainless Steel 1.4308 ASTM 316 Blind Forged Flanges

Forged Steel Flanges Size1-48inch WN flange 150# -2500# ASTM AB564

Quick Details

Product Description

1. Grade: STM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH,P280GHM 16MN, 20MN ,20#

2. Size: DN10-DN1000

3. Standard: DIN,BS,GOST12821-80,JPI, ETC.

4. Certification: ISO9001:2008, CE, CCS

Types’ Specification

Welding neck

1, Preferred for high-pressure, subzero or elevated temperature

2, Hub is tapered and bored to match pipe’s inside diameter so flow is not restricted, preventing turbulence and reducing erosion

3, Easily radiographed and provides excellent stress distribution

Slip-on

1, Not normally used in high-stress applications due to low hub and weld attachment

2, Silps over outside of pipe

3, Inside of flange welded at hub and end of pipe

Lap joint

1, Used where bolt alignment or access for cleaning is required

2, Similar to slip-on flange when used with lap joint stub end

3, Radius at intersection of flange face and bore to match lap joint stub end

Threaded

1, Used where welding would would be hazardous

2, Designed for low-pressure and non-cyclic applications

3, Bore is threaded to match pipe thread

4, Tapered to seal pipe and flanges

Socket welding

1, For small-diameter chemical processes, hydraulic and stream distribution lines

2, Similar to slip-on flange

3, Counter bore matches pipe bore, allowing unrestricted flow

4, Counter bore from hub side fits pipe’s outer diameter – can insert pipe in socket with fillet weld at hub

Blind

1, Used to close ends of piping

2, Has no bore

3, Permits access to sealed lines

Other flanges

Orifice, Expander, Reducing, Lightweight, Studding Outlets, Long Weld Necks,Metric, Navy Drawings, Customer Drawings

Our Services

     TOBO GROUP sales head offce in Shanghai.

     We are one of the Professional manufacturers Exporter  Pipeline products  in China .Our company was established in 1998, the plant covers 550, 000 square meters and a construction area of 6,8,000square meters, existing 260 workers and 45 technicians.

      We have five branch factories which can supply the best quality pipes, tubes, fittings flanges and related accessories. Now, it owns a number of advanced pipe production equipments, metal, forging, machining, cold forming, hot extrusion, such as heat treatment process, producing 60, 000 tons of pipe fittings. Company with a variety of detection devices, such as nondestructive testing, chemical analysis, metallographic examination, physical experiments. The technical is very strength, our main products contain fittingsforged socket welding fittings and threaded fittings, pipe weld and the materials of the products contain stainless steel ,duplex-stainless steel alloy steel.

       In addition, we are authorized by more than 120 top-class mills from South Korea,Japan and China like JFE,SUMITOMO,POSCO,BAOSTEEL, TISCO,LISCO,.TPCO,HENGYANG VALIN and so on .

Our main products as follows:

• Stainless steel pipe & tube

(seamless pipe / welded pipe / square pipe /  rectangular tube,duplex stainless / inconel tube)

• Carbon / alloy steel pipe & tube

(seamless pipe / ERW / SSAW / LSAW / UOE / hollow section pipe / Galvanized Pipe)

• Tubing and casting

(line pipe,water pipeline,gas pipeline,oil pipeline)

• Special steel tube

(copper tube/titanium tube/aluminium tube/nickel alloy )

• steel bar

(round bar/angle steel /flat steel/channel steel/steel wire)

• Pipe Fittings

(eblows, equal / reducing tees, concentric/eccentric reducers, caps, crosses, bends, dish end/end cup, stub ends, unions, couplings / hex couplings, swage nipples , nipples, hex. plug, sockolet, weldolet, thredolet, etc)

• Flange

(DIN flange/ AISI flange/blind flange/welding flange/stainless flange/slip on flange)

• steel sheet / coil

(stainless steel/carbon steel/alloy steel/galvanized steel/aluminium )

• Valve

(ball valve/gate valve/butterfly valve/globe valve/swing check valve/ check valve)

      In order to comply with the global modernization services development trends and eliminating the varieties distress of the global enterprise‘s purchase in the consumables.. We coordinate the pressure pipe manufacturer which with the scale of production,quality control and high cost performance (has passed ISO 9001 quality series attestation, ccs, DNV,PED/97/23/EC,AD2000-WO,special equipment manufacturing license,ASME-SA182.through a variety of effective assort mechanism to make up the shortage of supply and Post-processing of VAT enterprise, and to supply high quality pipe fittings, because of the superior quality and good service, we have established long term business cooperation with more than 60 countries and areas,which covers Europe, Africa, South America, North America, Middle East, Taiwan and South East Asia and so on.

      With many years effort and support from our valuable customers, these products have obtained a big market share in the world.

      Our business principle is "Superior quality, Competitive price, Timely delivery and Considerate service " Standing to the principle of “Enterprises focus on the core business”, TOBO will actively promotes the globalization of business strategy approach, using advanced supply chain management technology to service for clients with higher quality and more competitiveness ‘ s products. At the same time, we sincerely reply your inquiry, honesty waiting for your visiting and wish to have cooperation with you at the any time. We welcome all the customers to contact us for more information. We assure you, with our technical knowledge and experience, our company will be one of your Stable, Continuate business parters in China.
