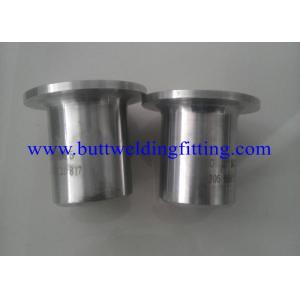

    904L / NO8904 / 1.4539 Stainless Steel Stub Ends Lap Joint Stub End 1/2” To 24”

    Ask Lasest Price
    Brand Name : TOBO
    Model Number : 904L / NO8904 / 1.4539
    Certification : SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 9980000PCS Per Month
    Delivery Time : 15DAYS
    • Product Details
    • Company Profile

    904L / NO8904 / 1.4539 Stainless Steel Stub Ends Lap Joint Stub End 1/2” To 24”


    904L / NO8904 / 1.4539 Stainless Steel Stub Ends Lap Joint Stub End 1/2” To 24”SCH10S SCH80S ASME/ANSI B16.9


    904L Super Austenstic Stainless Steel(1.4539,UNS N08904)

    904L is a high-alloy austenitic stainless steel with low carbon content. The grade is intended for use under severe corrosive conditions. It has been application proved over many years and was originally developed to resist corrosion in dilute sulfuric acid. It is standardized and approved for pressure vessel use in several countries. Structurally, 904L is fully austenitic and is less sensitive to precipitation ferrite and sigma phases than conventional austenitic grades with high molybdenum content. Characteristically, due to the combination of relatively high contents of chromium, nickel, molybdenum and copper 904L has good resistance to general corrosion, particularly in sulfuric and phosphoric conditions.


    Chemical Composition %
    C Cr Cu Mn Mo Ni P S Si
    0.02 19.0-23.0 1.0-2.0 2.0 4.0-5.0 23.0-28.0 0.045 0.035 1.0

    Production and transport of sulfuric acid
    Metal pickling in sulfuric acid
    Production and concentration of phosphoric acid
    Use in seawater, brackish water, condensers, heat exchangers and pipe work in general
    Paper and allied industries
    Gas washing
    Chemical and pharmaceutical industries

    TENSILE REQUIREMENTS
    Tensile Strength (KSI) 70
    Yield Strength (KSI) 25


    Product Name: Butt Welding Stainless Steel Fitting Stub end

    Size Range:
    DN15-DN600 (1/2"-24") Seamless Type
    DN15 - DN1200 (1/2"- 48" ) Welded type
    Wall Thickness: SCH5 to SCH160
    Material:
    Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
    Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
    Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
    Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760
    DIN 1.4301,1.4401,1.4404,1.4541,1.4401,1.4571 etc
    Manufacture Standard:
    ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631,
    End Bevel: According to the standard or the customer's requirements

    Surface Treatment: Shot blasted, rust-proof black oil
    Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection,




    Product Tags:

    Lap Joint Stub End



    Stub End Fittings


    Quality 904L / NO8904 / 1.4539 Stainless Steel Stub Ends Lap Joint Stub End 1/2” To 24” for sale
